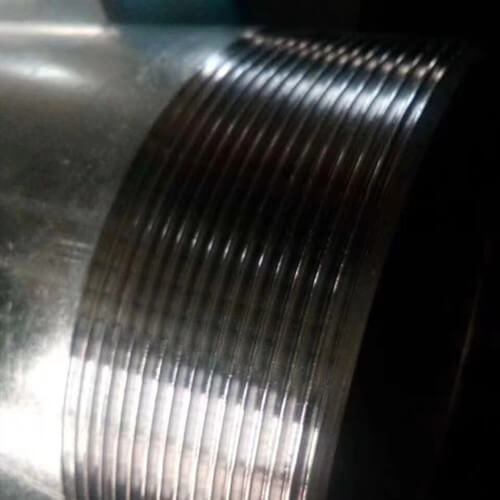

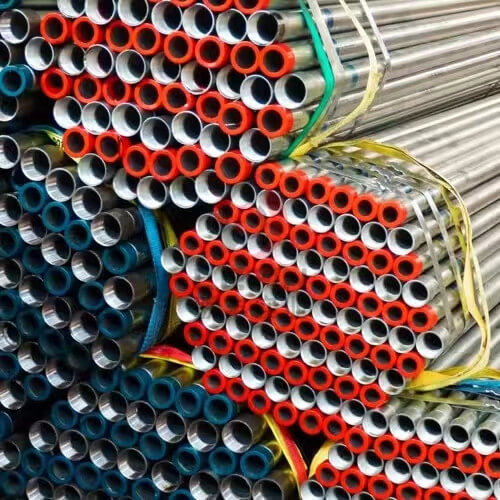

GALVANIZED STEEL PIPE

Galvanized Steel Pipe is coated by zinc that protects steel from corrosion.
It can be used on both commercial and residential areas, including water system, fencing, air condition (HVAC), handrail and guardrail, etc.
Description
Description
Galvanized Steel Pipe
GALVANIZED STEEL PIPE SPECIFICATION
Zinc Coating:
 Zinc coating: 60g/m2-550g/m2)
Outside diameter:
 Round pipe: 17mm-610mm
 Square pipe:15mm x 15mm - 500mm x 500mm
 Rectangular pipe: 10mm x 20mm -200mm x 400mm
Wall thickness:
 Round pipe: 0.6mm-12mm
 Square pipe:0.6mm-20mm
 Rectangular pipe: 0.6mm-20mm
Length:2m-5.8m/6m/12m ( We can adjust length according to your request)
Pipe end:
A): GTC (galvanized threaded and coupling);
B): GPE (galvanized plain end);
Packaging: Standard export seaworthy packing.
Test: Chemical Component Analysis, Mechanical Properties (Ultimate tensile strength, Yield strength, Elongation), Technical Properties (Flattening Test, Flaring Test, Bending Test, Hardness Test, Blow Test, Impact Test etc), Exterior Size Inspection.

APPLICATIONS OF ASTM A53
Galvanized Steel Pipe can be used for low pressure llow pressure liquid delivery such as water, gas, and oil or used as scaffolding frames.

PRODUCTION STANDARDS & GRADE
Standard : ASTM A53, ASTM A795
Galvanized Standard :ASTM A123

Grades: GR.A GR.B
