SSAW Steel Pipe

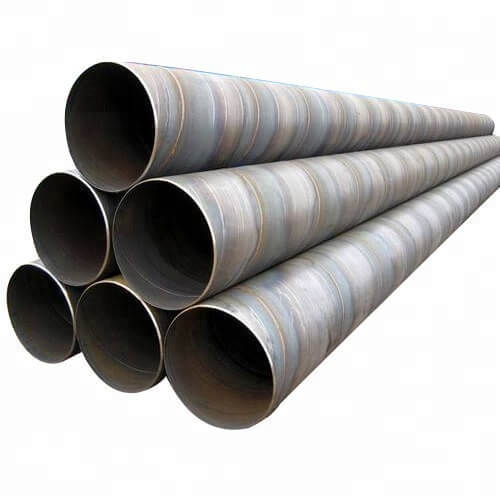

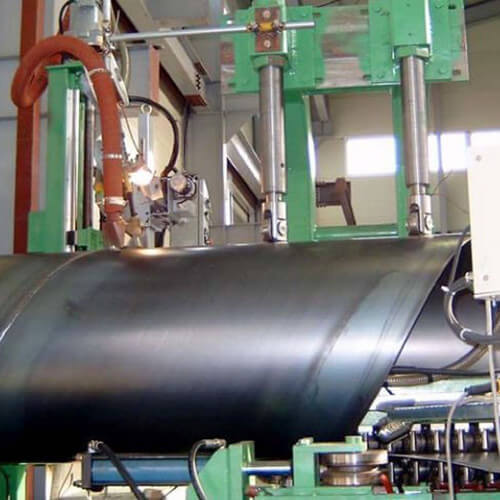

SSAW pipe is made of hot rolled coiled steel by automatic submerged arc weld under normal atmospheric temperature. All the pipes are produced according to API Spec 5L, GB/T9711.1, GB/T9711.2, ASTM A252-89 standard. These pipes mainly used in petroleum and natural gas industry to transport flammable and non-flammable liquid and steel construction.
SSAW Steel Pipe Supply condition
| Diameter |
219.1 mm – 3048mm (8″-120″) |
| Wall Thickness |
4mm – 30mm |
| Length |
3 – 70 M |
| Pipe End |
Square Ends, Beveled End |
| Standard |
ASTM A252, EN10217-1,2,5, EN10219-1, BS, JIS, IS |
| Steel Grade |
API 5L GR.B-X70,ASTM A252 GR 1, GR 2, GR 3 , BS 4360: Grade 43, Grade 50 , EN: S275JR, S275J0H, S275J2H, S355JRH, S355J0H, S355J2H |
| Surface |
Fusion Bond Epoxy Coating, Coal Tar Epoxy, 3PE, Vanish Coating, Bitumen Coating, Black Oil Coating As Per Customer’s Requirement |
| Coating Standard |
ANSI/AWWA C104/A21.4 American National Standard for Cement-Mortar Lining for ductile-iron Pipe and Fittings for water; DIN 30670 Polyethylene coatings of steel and fittings |
| Test |
Chemical Component Analysis, Mechanical Properties (Tensile Strength, Yield Strength, Elongation), Metallographic Test, Technical Properties (Bending Test, Charp-V Impact Test, Hydrostatic Test, X-ray Test, Hydrostatic Test |
| Mill Test Certificate: |
EN 10204/3.1B |
| Application |
Spiral welded steel pipes are widely used in Oil, Natural Gas, Water and other flammable & nonflammable liquid conveyance and distribution pipelines, steel structures for construction and other general purposes by means of their wide size range. |
Standard and Classfication of SSAW Steel Pipe
| Classfication |
Standard |
Main Products |
| Steel Pipe for Fluid Service |
GB/T 14291 |
Welded pipe for mine fluid sevice |
| GB/T 3091 |
Welded pipe for low pressure fluid service |
| SY/T 5037 |
Spirally submerged arc welded steel pipe for pipelines for low pressure fluid service |
| ASTM A53 |
Black and hot-hipped galvanized welded and seamless steel pipe |
| BS EN10217-2 |
Welded steel tybes for pressure purposes – delivery technical conditions – part2: Electric welded non- alloy and alloy steel tubes with specified elevated temperature properties |
| BS EN10217-5 |
Welded steel tybes for pressure purposes – delivery technical conditions – part5: submerged arc welded non-alloy and alloy steel tubes with specified elevated temperature properties |
| Steel Pipe for Ordinary Structure |
GB/T 13793 |
Longitudinally electric resistance welded steel pipe |
| SY/T 5040 |
Spirally submerged arc welded steel pipe piles |
| ASTM A252 |
Welded and seamless steel pipe piles |
| BS EN10219-1 |
Cold formed welded structural hollow sections of non-alloy and fine grain steels – part1: Technical delivert conditions |
| BS EN10219-2 |
Cold formed welded structural hollow sections of non-alloy and fine grain steels – part2: tolerances dimmsions and sectional properties |
| Line Pipe |
GB/T 9711.1 |
Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class A steel pipe) |
| GB/T 9711.2 |
Steel pipe for pipeline transportation system of petroleum and natural gas industries(Class B steel pipe) |
| API 5L PSL1/2 |
Line pipe |
| Casing |
API 5CT/ ISO 11960 PSL1 |
Steel pipe for use as casing or tubing for wells of petroleum and natural gas industries |
Chemical Analysis and Mechanical Properties of SSAW Steel Pipe
| Standard |
Grade |
Chemical Composition(max)% |
Mechanical Properties(min) |
| C |
Si |
Mn |
P |
S |
Tensile Strength(Mpa) |
Yield Strength(Mpa) |
| API 5CT |
h40 |
- |
- |
- |
- |
0.03 |
417 |
417 |
| J55 |
- |
- |
- |
- |
0.03 |
517 |
517 |
| K55 |
- |
- |
- |
- |
0.3 |
655 |
655 |
| API 5L PSL1 |
A |
0.22 |
- |
0.9 |
0.03 |
0.03 |
335 |
335 |
| B |
0.26 |
- |
1.2 |
0.03 |
0.03 |
415 |
415 |
| X42 |
0.26 |
- |
1.3 |
0.03 |
0.03 |
415 |
415 |
| X46 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
435 |
435 |
| X52 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
460 |
460 |
| X56 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
490 |
490 |
| X60 |
0.26 |
- |
1.4 |
0.03 |
0.03 |
520 |
520 |
| X65 |
0.26 |
- |
1.45 |
0.03 |
0.03 |
535 |
535 |
| X70 |
0.26 |
- |
1.65 |
0.03 |
0.03 |
570 |
570 |
| API 5L PSL2 |
B |
0.22 |
0.45 |
1.2 |
0.025 |
0.015 |
415 |
415 |
| X42 |
0.22 |
0.45 |
1.3 |
0.025 |
0.015 |
415 |
415 |
| X46 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
435 |
435 |
| X52 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
460 |
460 |
| X56 |
0.22 |
0.45 |
1.4 |
0.025 |
0.015 |
490 |
490 |
| X60 |
0.12 |
0.45 |
1.6 |
0.025 |
0.015 |
520 |
520 |
| X65 |
0.12 |
0.45 |
1.6 |
0.025 |
0.015 |
535 |
535 |
| X70 |
0.12 |
0.45 |
1.7 |
0.025 |
0.015 |
570 |
570 |
| X80 |
0.12 |
0.45 |
1.85 |
0.025 |
0.015 |
625 |
625 |
| ASTM A53 |
A |
0.25 |
0.1 |
0.95 |
0.05 |
0.045 |
330 |
330 |
| B |
0.3 |
0.1 |
1.2 |
0.05 |
0.045 |
415 |
415 |
| ASTM A252 |
1 |
- |
- |
- |
0.05 |
- |
345 |
345 |
| 2 |
- |
- |
- |
0.05 |
- |
414 |
414 |
| 3 |
- |
- |
- |
0.05 |
- |
455 |
455 |
| EN10217-1 |
P195TR1 |
0.13 |
0.35 |
0.7 |
0.025 |
0.02 |
320 |
320 |
| P195TR2 |
0.13 |
0.35 |
0.7 |
0.025 |
0.02 |
320 |
320 |
| P235TR1 |
0.16 |
0.35 |
1.2 |
0.025 |
0.02 |
360 |
360 |
| P235TR2 |
0.16 |
0.35 |
1.2 |
0.025 |
0.02 |
360 |
360 |
| P265TR1 |
0.2 |
0.4 |
1.4 |
0.025 |
0.02 |
410 |
410 |
| P265TR2 |
0.2 |
0.4 |
1.4 |
0.025 |
0.02 |
410 |
410 |
| EN10217-2 |
P195GH |
0.13 |
0.35 |
0.7 |
0.025 |
0.02 |
320 |
320 |
| P235GH |
0.16 |
0.35 |
1.2 |
0.025 |
0.02 |
360 |
360 |
| P265GH |
0.2 |
0.4 |
1.4 |
0.025 |
0.02 |
410 |
410 |
| EN10217-5 |
P235GH |
0.16 |
0.35 |
1.2 |
0.025 |
0.02 |
360 |
360 |
| P265GH |
0.2 |
0.4 |
1.4 |
0.025 |
0.02 |
410 |
410 |
| EN10219-1 |
S235JRH |
0.17 |
- |
1.4 |
0.04 |
0.04 |
360 |
360 |
| S275JOH |
0.2 |
- |
1.5 |
0.035 |
0.035 |
410 |
410 |
| S275J2H |
0.2 |
- |
1.5 |
0.03 |
0.03 |
410 |
410 |
| S355JOH |
0.22 |
0.55 |
1.6 |
0.035 |
0.035 |
470 |
470 |
| S355J2H |
0.22 |
0.55 |
1.6 |
0.03 |
0.03 |
470 |
470 |
| S355K2H |
0.22 |
0.55 |
1.6 |
0.03 |
0.03 |
470 |
470 |
Tolerance of Outside Diameter and Wall Thickness of SSAW Steel Pipe
| Standard |
Tolerance of Pipe Body |
Tolerance of Pipe End |
Tolerance of Wall Thickness |
| Out Diameter |
Tolerance |
Out Diameter |
Tolerance |
| GB/T3091 |
OD≤48.3mm |
≤±0.5 |
OD≤48.3mm |
– |
≤±10% |
| 48.3 ≤273.1mm |
≤±1.0% |
48.3 |
– |
| ≤273.1mm |
| 273.1 ≤508mm |
≤±0.75% |
273.1 |
-0.8～+2.4 |
| ≤508mm |
| OD>508mm |
≤±1.0% |
OD>508mm |
-0.8～+3.2 |
| GB/T9711.1 |
OD≤48.3mm |
-0.79～+0.41 |
– |
– |
OD≤73 |
-12.5%～+20% |
| 60.3 ≤457mm |
≤±0.75% |
OD≤273.1mm |
-0.4～+1.59 |
88.9≤OD≤457 |
-12.5%～+15% |
| 508 ≤941mm |
≤±1.0% |
OD≥323.9 |
-0.79～+2.38 |
OD≥508 |
-10.0%～+17.5% |
| OD>941mm |
≤±1.0% |
– |
– |
– |
– |
| GB/T9711.2 |
60 ≤610mm |
±0.75%D～±3mm |
60 ≤610mm |
±0.5%D～±1.6mm |
4mm |
±12.5%T～±15.0%T |
| 610 ≤1430mm |
±0.5%D～±4mm |
610 ≤1430mm |
±0.5%D～±1.6mm |
WT≥25mm |
-3.00mm～+3.75mm |
| OD>1430mm |
– |
OD>1430mm |
– |
– |
-10.0%～+17.5% |
| SY/T5037 |
OD<508mm |
≤±0.75% |
OD<508mm |
≤±0.75% |
OD<508mm |
≤±12.5% |
| OD≥508mm |
≤±1.00% |
OD≥508mm |
≤±0.50% |
OD≥508mm |
≤±10.0% |
| API 5L PSL1/PSL2 |
OD<60.3 |
-0.8mm～+0.4mm |
OD≤168.3 |
-0.4mm～+1.6mm |
WT≤5.0 |
≤±0.5 |
| 60.3≤OD≤168.3 |
≤±0.75% |
168.3 ≤610 |
≤±1.6mm |
5 |
≤±0.1T |
| 168.3 ≤610 |
≤±0.75% |
610 ≤1422 |
≤±1.6mm |
T≥15.0 |
≤±1.5 |
| 610 ≤1422 |
≤±4.0mm |
OD>1422 |
– |
– |
– |
| OD>1422 |
– |
– |
– |
– |
– |
| API 5CT |
OD<114.3 |
≤±0.79mm |
OD<114.3 |
≤±0.79mm |
≤-12.5% |
| OD≥114.3 |
-0.5%～1.0% |
OD≥114.3 |
-0.5%～1.0% |
≤-12.5% |
| ASTM A53 |
≤±1.0% |
≤±1.0% |
≤-12.5% |
| ASTM A252 |
≤±1.0% |
≤±1.0% |
≤-12.5% |
